Unlock new revenue
with indoor 5G
From best effort - to a secured user experience and monetization.
One high-performing solution serving multiple networks.
Maximizing the value for enterprises and consumers alike.
-
Positioning
-
5G laptops
-
Healthcare
-
Stadium
-
Public safety

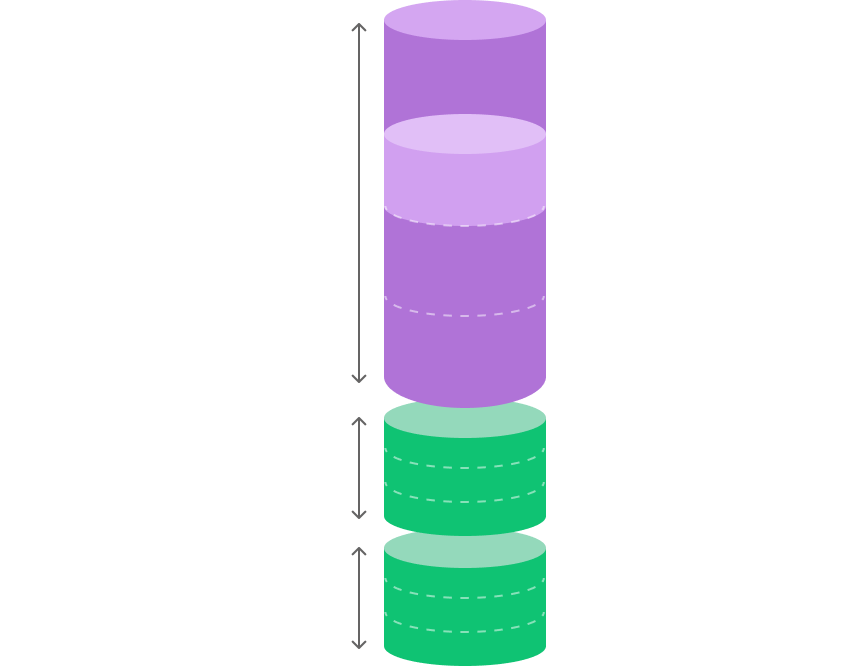

Operator A (Host)
Public
-
Downlink
Mbps
-
Uplink
Mbps
Private
Optional
-
Downlink
Mbps
-
Uplink
Mbps
Operator B
Public
-
Downlink
Mbps
-
Uplink
Mbps
Operator C
Public
-
Downlink
Mbps
-
Uplink
Mbps
Dot 4455
- Super high data rate – up to 4.4 Gbps
- Cost-efficient deployment for multi-operator sharing
- Flexible deployment with CAT6A, hybrid fiber or fiber
| Max throughput | Up to 4.5 Gbps |
| Instantaneous bandwidth | 200 MHz for mid-band Full-band for FDD-band |
| Output power | 4 x 400 – 500 mW (TDD) 4 x 125 – 250 mW (FDD) |
| MIMO | 4T4R for primary TDD band 2T2R per band (FDD and/or TDD) |
| Antennas | 8 built in omni-directional (external antenna variant also available) |
| Standards | 2G, 3G, 4G, 5G |
| Weight/volume | 2.3 kg / 2.3 L |

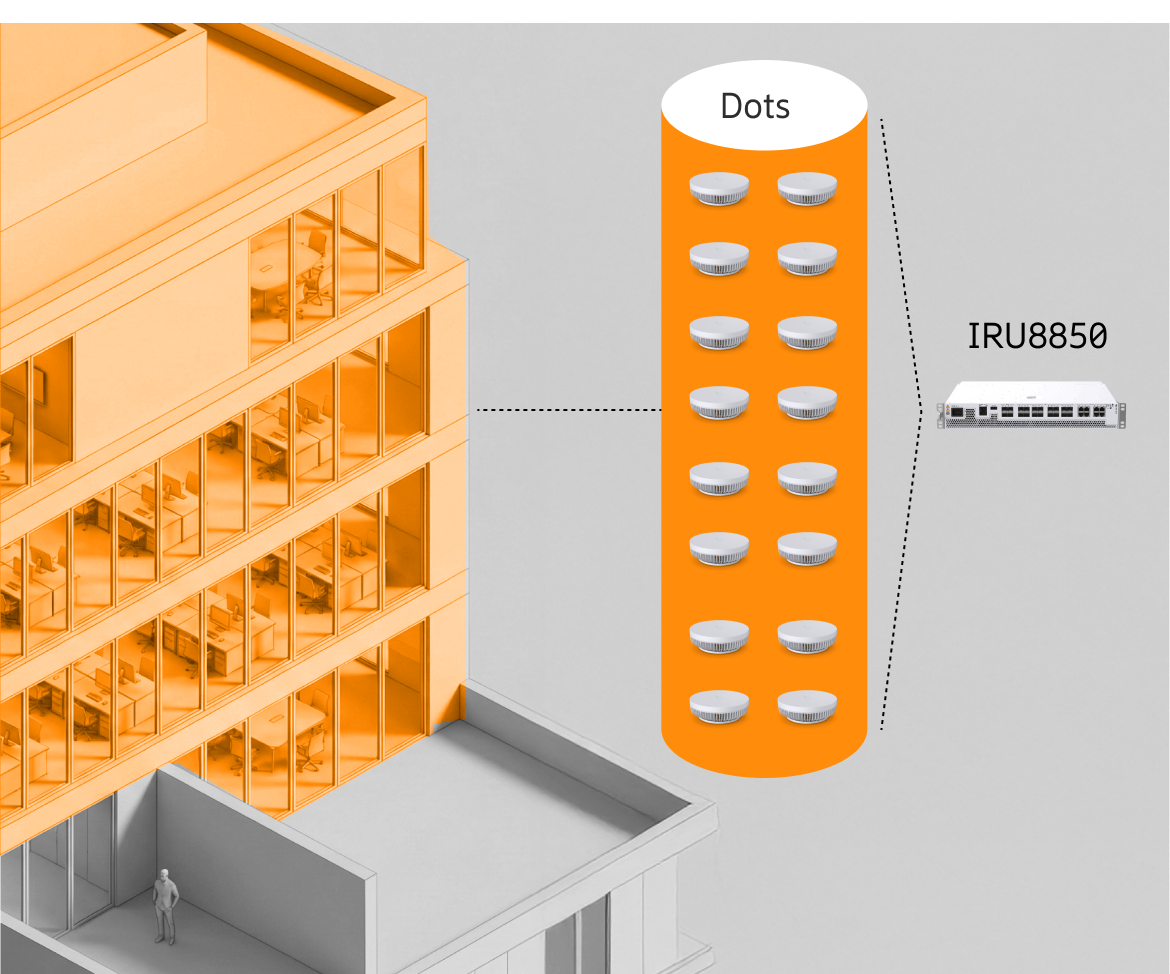

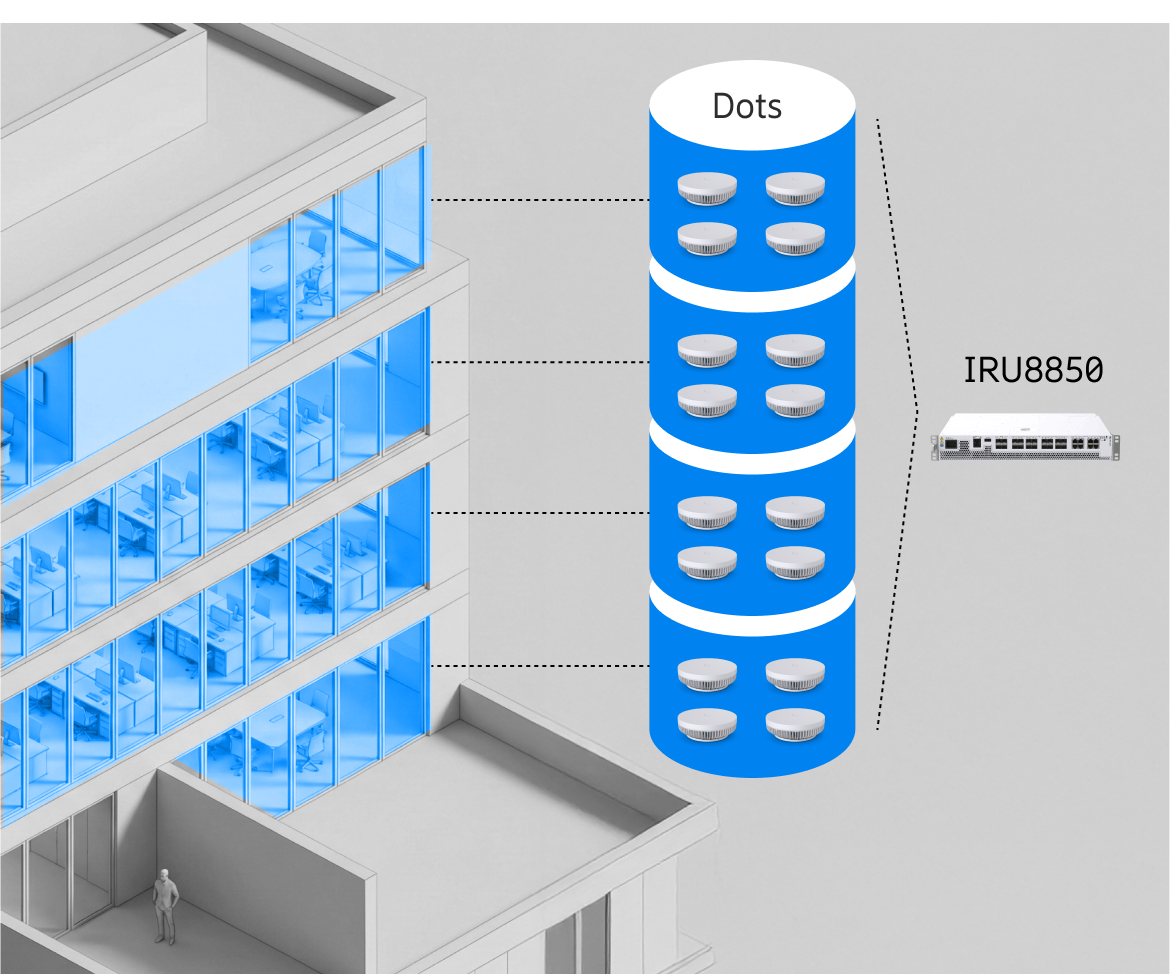

IRU 8850

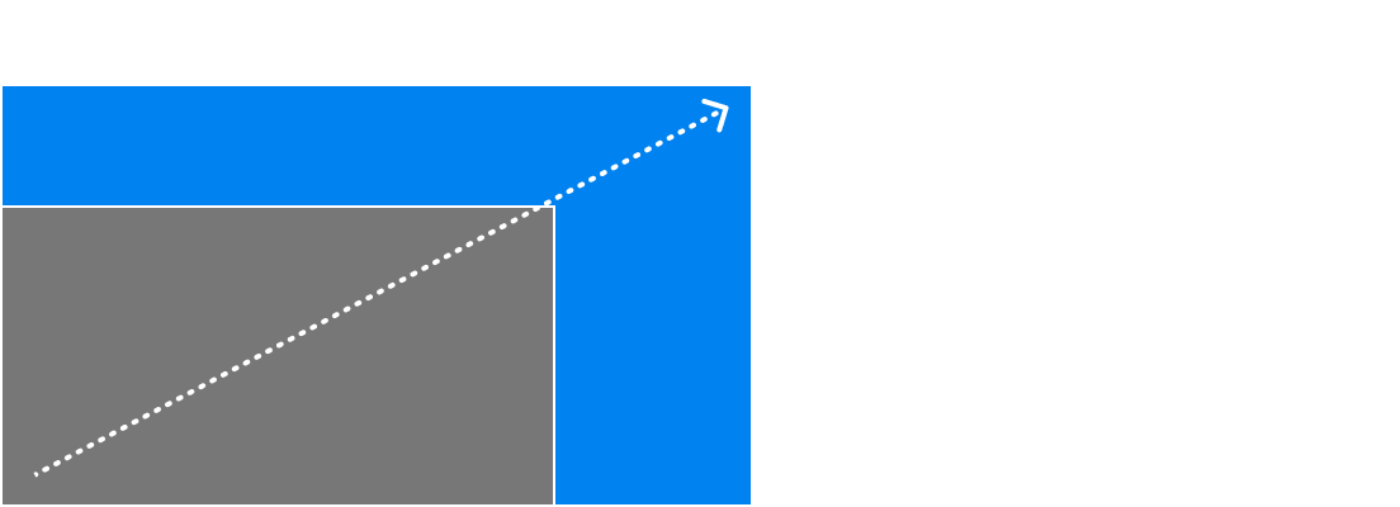

- Double the capacity and double the coverage of current IRU generation
- Optimized for high-capacity Multi-operator deployments
- IT-like deployment with Fiber, Hybrid-fiber and electrical CAT6A cable, supporting up to 10km between IRU and Dots
- HW prepared for Open Fronthaul, ready to support future network evolution
| Dot ports | 16 fiber (SFP+/SFP28 cages) 8 RJ-45 (total up to 16 Dots) |
| Fronthaul | 4 CPRI SFP+/SFP28 ports (4.9 / 9.8 / 10.1 / 25 Gbps) |
| Dot Compatibility | Single Band: 4474, 4459, 4454 Dual Band: 2254 Triple Band: 4475, 4453, 4455 Quad Band: 2256 |
| Antenna bandwidth | Up to 1600 MHz |
| Dimensions | 1.5 U |
| Weight | 10 kg |
| Power supply | -48 Vdc, ET20 connector 110 – 240 Vac, 50-60 Hz |
| Supported cables | Easy deployment with CAT6A, hybrid fiber or fiber for extended reach (10km) |
3 x RAN Processor 6672
- Unmatched capacity (4x) for the smallest energy footprint
- Designed for up to 6 NR/LTE mixed mode configurations
- Built for ORAN, 5G Advanced and enhanced AI/ML deployments
- Best in class flexibility for DRAN and unmatched capacity for CRAN on 1U
- Wifi client connectivity for simplified maintenance
| Size | 1 U |
| CPRI/eCPRI ports | 18 |
| Max Throughput (DL/UL) - Hardware Prepared | 40 Gbps |
| Mixed Mode of CPRI/ eCPRI supported | 12 ports CPRI/eCPRI All 18 ports support eCPRI |
| Operating temperature | -5 to +55° C |
| Standards | NR, LTE |
| Protection class | IP 20 |
| Power consumption | ~295 W (estimated) |
About
How Spatial Uplink
Multi-User MIMO works
Modern indoor environments are becoming increasingly uplink‑heavy as devices transmit video, sensor data and real‑time content — now amplified by the rise of AI‑assisted applications.
Spatial Uplink MU‑MIMO enables the IRU8850 installed base to meet these growing demands through a software upgrade only, with no new hardware required.
capacity
Increased UL user throughout
2T2R
4T4R
MIMO
2T8R
4T16R
About
Spatial Uplink
Multi-User MIMO in action
UL MU‑MIMO enables a major uplift in indoor 5G uplink performance for both FDD and TDD by allowing up to four simultaneous uplink users (four layers) per cell with improved interference mitigation. Simulation results show that traditional DAS experiences rapid throughput degradation under load, while RDS provides more stable scaling. With UL MU‑MIMO, uplink throughput and scalability improve significantly beyond both architectures.
The study uses a large single‑floor office (50,000 m²) with 80 ceiling‑mounted Dots, 4,000 UEs, and the 3GPP Mixed Office model. Traffic follows 3GPP FTP model 1, with FDD 20 MHz at 2.0 GHz and TDD 100 MHz at 3.5 GHz (DDDSU).
Uplink drivers with high requirements on performance
Uplink traffic growth trend Basic Mobile Coverage
-
Personal devices
-
Wearables
-
Connected objects
(Built-in-5G)
building
(Collab/Design)
Room System
(Live Transcribe/Assist)
(Work Agents)
(Facilities/Logistics) work
collaboration
(Traveler Uploads/Video Calls)
Ticket kiosks
(On-the-go Work)
(Wayfinding/Tourist Info)
(Cloud controlled cleaning/info)
(CCTV/Body-cam)
Service Carts/Vehicles
Continuous Uplink Agents
Security
- Triple band*
- Dual band*
- Single band
MIMO
MIMO
regardless of the starting point
Indoor performance
in action
Integrated positioning and communication
- Tracking of critical assets
- Consumer pattern insights
- Emergency positioning
Integrated positioning
and communication
-
1-3m
Unmatched cellular positioning precision for any 5G device
-
3 in 1
Solution for coverage, capacity
and positioning -
100%
Integrated with the existing network and Ericsson Private 5G
-
New features
Integrated positioning and communication: What’s next?
Features:
- From single to multi-operator communication
- Single operator positioning
- On the road to positioning for all CSPs
Integrated positioning and communication: What’s next?
Features:
- Positioning on Dot level
- Cover different floors and corridors
- Benefit the healthcare industry
Indoor performance
in action
A modern workplace with high-performance Indoor 5G
- Enable the office of the future: reliable multi-
operator 5G transforms connected spaces - Empower today’s workforce: secure, high-
speed connectivity for laptops and mobile
devices - Drive innovation and efficiency: AR/VR
meetings, AI analytics and holographic design
collaboration
Monetize 5G indoor
Customer case
High performing indoor 5G for offices
10 Norton Folgate, UK
A modern Grade A building with BREEAM Outstanding & Wiredscore Platinum certifications struggled with indoor mobile coverage.
Building now has strong and reliable 4G & 5G across all floors. It was the first building in UK with shared small cell indoor 5G from neutral host.
A fully shared high performance indoor mobile system installed, using Ericsson Dot solution, with all operator services being integrated.
Indoor performance
in action
Reimagine healthcare with secure, scalable 5G connectivity
- Enable the hospital of the future: reliable 5G
for advanced connected care - Protect critical operations: seamless coverage
for staff coordination and secure data integrity - Drive innovation and efficiency: AR/VR-assisted surgery, AI diagnostics, predictive
patient care
Monetize 5G indoor
Customer case
Neutral Host and Private 5G networks
Tampa General Hospital, USA
Better networking support for a new electronic medical records system. Outdated Distributed Antenna System (DAS)unreliable and caused disruptions.
Improved connectivity for all premises that requires both public and private data integrity.
Hospital operations run more smoothly.
Combining Neutral Host with Private 5G Network for everyday coverage and to support the medical, academic, and research initiatives in the future.
Monetize 5G indoor
Customer case
Neutral Host and Private 5G Networks
AdventHealth, USA
IT infrastructure can’t support the developing “hospital of the future” connectivity needs and ambitions.
Streamlined infrastructure with flexible coverage capabilities to support the dynamic and innovative vision.
The Neutral Host network provides coverage for patients and visitors, while the Private 5G network covers operational needs.
Indoor performance
in action
Monetize stadium experiences with scalable indoor 5G
- Monetize every seat: seamless 5G unlocks new
fan revenue streams - Operate safely at peak: resilient connectivity for
ticketing, payments, and emergency alerts - Create immersive experiences: AR replays,
holographic highlights, and AI-driven crowd
insights
Monetize 5G indoor
Customer case
Elevating performance for live experiences
The Rogers Centre, Canada
Traditional stadium networks couldn’t handle massive, simultaneous social sharing and uploads during events. Rogers Centre faced record-breaking data usage and complex coverage challenges.
Rogers and Ericsson deployed advanced 5G with Radio Dot System, Massive MIMO antennas, and real-time network management, ensuring robust, high-capacity coverage for 50,000+ users.
Network capacity expanded equivalent to 33 cell towers’ worth, supporting 7.4 TB data in one show, 182,000+ photos shared, and future-ready, scalable, sustainable operations.
Indoor performance
in action
Secure and consistent experience for businesses
- Laptops and phones on secure and high-performing connection
- Embedded 3GPP security
- Increased CSP market share
Connect small and medium enterprises
Superior and secure enterprise 5G connectivity is now enhanced with even greater coverage. Cater to venues
up to 8,000 m2 (80,000 ft2).
Key Features:
- All-in-one wall- or rack-mounted solution supporting up to 8 Dots
- 3 Gbps peak downlink speed
- Supports all generally available Dots
- 2G through 5G support
